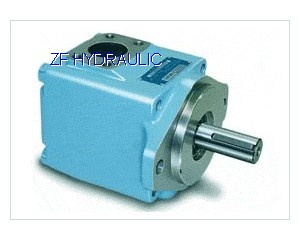

Denison T6 series T6D-028-1R00-C1 Single Vane Pumps

Denison T6 series T6D-028-1R00-C1 Single Vane Pumps
Product name : Denison T6 series T6D-028-1R00-C1 Single Vane Pumps
Item :
Details :
Denison T6 series T6D-028-1R00-C1 Single Vane Pumps
Specification:



Series Size Delivery Speed Pressure bar Min Port Pressure
ml/rev rpm Max Rated
T6C 003 10.8 600~2800 280 240 0.80
005 17.2
006 21.3
008 26.4
010 34.1
012 37.1
014 46
017 58.3
020 63.8
022 70.3
025 79.3 800~2500
028 88.8 210 180
031 100
T6D 014 47.6 600~2500 240 210 0.80
020 66
024 79.5
028 89.7
031 98.3
035 111
038 120.3
042 136 600~2200
045 145.7 0.85
050 158 210 160
061 190.5 600~1800 120 80
T6E 042 132.3 800~2200 240 210 0.80
045 142.4
050 158.5
052 164.8
062 196.7 0.85
066 213.3 0.95
072 227.1

Features:



T6C, T6E and T6D series are fixed displacement and balanced type single vane pumps.The pump is designed for higher operating pressure and greater flow same housing size.

With a balanced pin-vane design,outlet pressure is continuously applied only to the pin.The pin provides the steady light force against the vane.Top and bottom areas of the vane are subject to the same pressure,either inlet or outlet pressure,depending on the vane's location during rotor rotation.This pin-vane design minimizes noise level and improves volumetric efficiency.

With the cartridge independent of the shaft,allowing for easy change of flow capacity servicing without removing the pump from its mounting.

Other models:

T6C-003-1R01-A1 T6D-031-2R01-B1
T6C-006-2R00-C1 T6D-031-2R02-B1
T6C-008-1R01-B1 T6D-035-1L00-B1
T6C-008-2R00-B1  T6D-035-1R00-C1
T6C-008-2R01-B1  T6D-035-1R01-B1
T6C-008-2R02-B1  T6D-035-2R00-B1
T6C-008-3R02-B1  T6D-035-2R00-C1
T6C-010-1L00-B1  T6D-038-1R00-C1
T6C-010-1R01-B1  T6D-038-2R00-C1
T6C-010-2R01-B1  T6D-042-1R00-C1
T6C-010-2R02-B1  T6D-042-1R01-B1
T6C-012-1L01-B1  T6D-042-2R00-C1
T6C-014-1R00-B1 T6D-042-2R02-B1
T6C-014-1R00-C1 T6D-045-1R00-C1
T6C-014-1R02-B1 T6D-045-2R00-C1
T6C-014-1R02-B1  T6D-045-2R01-B1
T6C-014-2L01-B1  T6D-050-1R00-C1
T6C-014-2R02-B1 T6D-050-2R00-C1
T6C-014-2R02-B1  T6D-050-2R02-B1
T6C-017-1L00-B1 T6D-050-2R02-B1
T6C-017-1R00-B1  T6D-B38-1R00-B1
T6C-017-1R02-B1  T6E-042-1R00-C1
T6C-017-2R01-B1  T6E-042-1R01-A1
T6C-017-3R00-B1  T6E-042-2R00-C1
T6C-017-3R01-B1  T6E-045-1R00-C1
T6C-020-1R00-B1  T6E-045-2R00-C1
T6C-020-1R00-C1 T6E-050-1R00-A1
T6C-020-1R02-B1  T6E-050-1R00-A5
T6C-020-2R00-B1 T6E-050-1R00-C1
T6C-020-2R00-C1 T6E-050-2R00-C1
T6C-020-2R01-B1  T6E-052-1R00-C1
T6C-02-1R00-B1  T6E-052-1R02-A1
T6C-02-1R02-B1  T6E-052-1R03-A1
T6C-02-1R03-B1  T6E-052-2R00-C1
T6C-022-2R00-C1 T6E-062-1L01-A1
T6C-025-1R00-B1  T6E-062-1R00-A1
T6C-025-1R01-B1  T6E-062-1R00-C1
T6C-025-1R02-B1  T6E-062-1R01-A1
T6C-025-1R03-B1  T6E-062-1R01-B1
T6C-028-1R00-B1  T6E-062-1R03-A1
T6C-028-1R02-A1 T6E-062-2R00-C1
T6C-028-2R01-B1  T6E-062-3L02-A1
T6C-031-1R00-B1 T6E-066-1L02-A1
T6C-031-1R00-B1  T6E-066-1R00-A1
T6C-031-1R03-B1 T6E-066-1R00-C1
T6C-031-1R03-B1  T6E-066-1R01-A1
T6C-031-2R00-B1 T6E-066-1R02-A1
T6C-031-2R00-B1  T6E-066-2R00-C1
T6C-031-2R01-B1 T6E-066-2R02-A1
T6D-014-2R00-C1 T6E-072-1L00-A1
T6D-014-3R00-B1 T6E-072-1L01-A1
T6D-017-1R00-C1 T6E-072-1R00-A1
T6D-017-2R00-C1 T6E-072-1R00-C1
T6D-020-1R00-C1 T6E-072-1R01-A1
T6D-020-1R01-B5 T6E-072-1R02-A1
T6D-020-2R00-C1 T6E-072-2R00-C1
T6D-024-1R00-C1 T6E-072-3R02-A1
T6D-024-2R00-C1 T6E-072-3R02-A1
T6D-028-1R00-C1 T6E-072-3R03-A1
T6D-031-1R00-C1 T6E-085-1R00-C1
T6D-031-2R00-C1 T6E-085-2R00-C1
