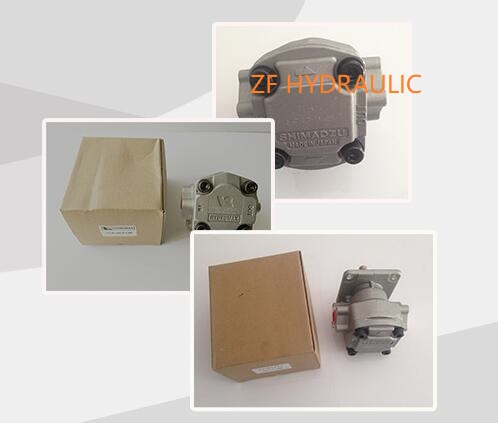

Hydraulic gear pump GPY-3R for sale

Hydraulic gear pump GPY-3R for sale

■Model code

GPY series	8	R
GPY series quantitative gear pump	reference to specification table	R：clockwise L：anticlockwise

■Specification

Model	Displacement cm3/rev	Using pressure Mpa		Speed		Weight Kg
		Rated	Max	Min	Max
GPY-3	2.98	20.6	22.6	700	3000	1.2
GPY-4	4.09			500		1.2
GPY-5.8	5.77					1.2
GPY-7	7.07					1.2
GPY-8	8.01					1.2
GPY-9	8.94					1.4
GPY-10	10.06					1.4
GPY-11.5	11.55				2500	1.4

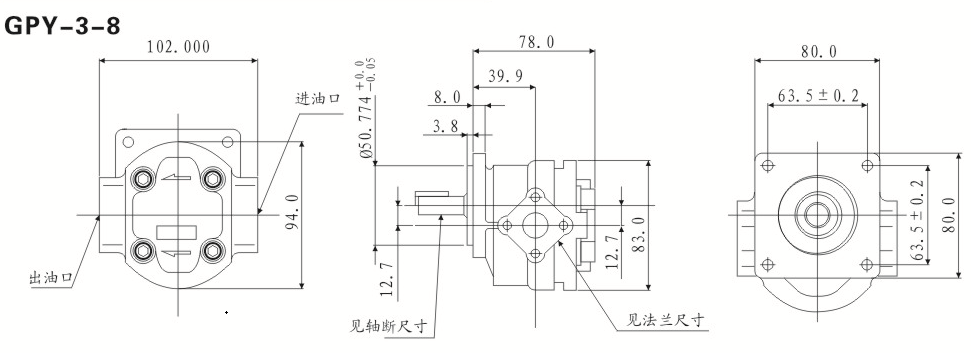

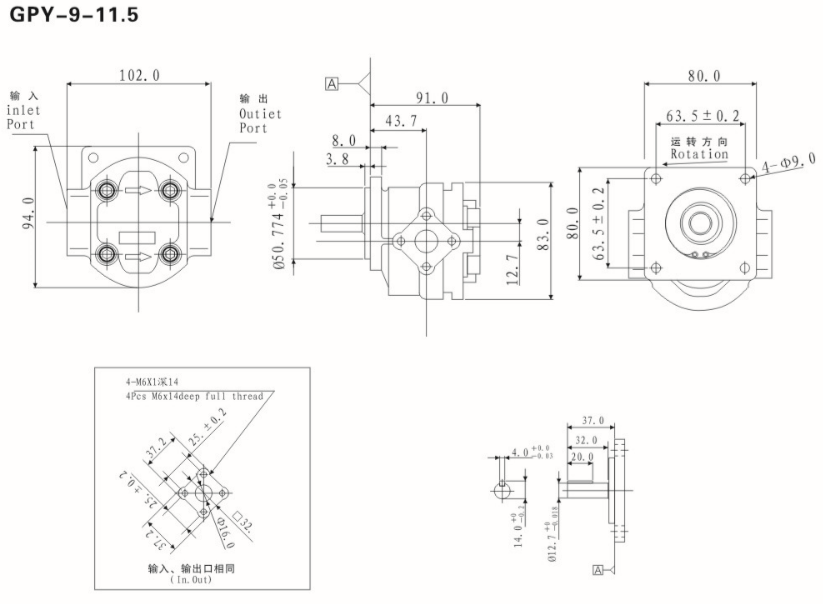

■Drawing size



This series gear pumps other models have :  GPY-3R, GPY-4R, GPY-5.8R, GPY-7R, GPY-8R, GPY-9R, GPY-10R, GPY-11.5R

Gear pump is formed by rely on the pump cylinder and the meshing gear working volume change and move to transport the liquid or causes the pressurization of the rotary pump. By two gears, pump body and cover of two closed space, when gears rotate, gear side space volume from small greaten, forming a vacuum, the liquid suction, the side of the gear mesh volume from large to small of the space, and the liquid in pipe line. Suction chamber and discharge chamber is separated by two gears meshing line. The gear pump outlet pressure depends on the size of the source resistance pump.

High pressure gear pump GPY series product features:

1. High efficiency, precise and detailed structure design, this series pump with high volumetric efficiency and high mechanical efficiency.

2. High reliability, light weight, tight and fine.

3. Advanced casting nature, to ensure stable and reliable performance.

4. The big flow of vane pump with low pressure high and low pump combination, reasonable use of primary energy and cost savings.

Note:
1. Should be used with anti-foam, prevent oxidation and anti-corrosion additive such as mineral oil, oil of aniline point of 77-77 degrees

2. The recommended oil temperature: 10 to 60 degrees, the temperature limits, and 20 to 80 degrees

3. Recommend a suitable viscosity: 15-150 CST (15-150 was a/s), boundaries using viscosity: 10-430 CST (10-430 mm2/s)

4. Oil suction mouth pressure: -0.02-0.03 MPA (- 02-0.3 KGF/cm2), bottom temperature instant start Mpa (0.4 kgf/cm2)

Gear pump gpy-3r gpy-2r gpy-3r/gear pump gpy-2r JANPN SHIMADZU



Gear pump manufacturers gpy-9r/gear pump gpy-9r gpy-3r gpy-6r



Taiwan xinhong gear pump gpy-6r/gear pump manufacturers gpy-9r



Gear pump manufacturers gpy-8r/gear pump gpy-8r



Gear pump manufacturers gpy-11.5r/gear pump gpy-9r gpy-3r gpy-11.5r



JANPN SHIMADZU Gear pump gpy-4r gpy-8r gpy-11.5r/gear pump gpy-8r gpy-4r gpy-9r



Please contact us for details, we will serve you wholeheartedly.



【GPY gear pump gpy-9r 】 gear pump gpy-6r gpy-6r gpy-8r imported gear pump wholesale



【GPY gear pump gpy-9r 】 gear pump manufacturers gpy-6r domestic gear pump wholesale



ZF hydraulic is specialized in gear pump model gear pump manufacturers gear pump manufacturers gear pump supply gear pump hydraulic gear pump working principle explosion-proof gear pump high temperature gear pump gear pump series high pressure gear pump cycloid gear pump gear pump price Taiwan xinhong gear pump hgp-1a gear pump sales and production.



The difference between oil pump and gear pump



Pump refers to the pump used to transport oil, and gear pump refers to the pump structure, gear pump can also be used as a pump. The former refers to the purpose of the pump, the latter refers to the pump structure.



Taiwan xinhong gear pump gpy-11.5 R/ gear pump gpy-3r



JANPN SHIMADZU GPY gear pump gpy-2r/gear pump gpy-6r gpy-6r gpy-8r



Gear pump gpy-4r gpy-8r gpy-3r/gear pump gpy-4r gpy-8r gpy-3r



JANPN SHIMADZU gear pump gpy-9r gpy-3r gpy-3r/gear pump gpy-4r gpy-8r gpy-8r



JANPN SHIMADZU Gear pump gpy-8r/gear pump gpy-8r gpy-4r gpy-4r



Taiwan xinhong gear pump gpy-6r/gear pump manufacturers gpy-6r



Gear pump purchase need to pay attention to what? ZF hydraulic remind you:



1 if the bulk purchase of gear pump, must choose the regular gear pump manufacturers! (for example: ZF hydraulic)

2 to buy gear pump must sign a formal contract with the manufacturers!

3. Before purchasing gear pump in large quantities, be sure to let the manufacturer make prenatal sample confirmation!

ZF hydraulic branch specializing in the provision of gear pump bulk purchase, looking forward to working with you!

Gear pump gpy-11.5 R gpy-11.5 R gpy-6r/gear pump manufacturers gpy-8r



Gear pump gpy-3r gpy-2r gpy-9r/gear pump gpy-9r gpy-3r gpy-11.5 R



Gear pump gpy-11.5 R gpy-11.5 R gpy-6r/gear pump gpy-9r gpy-3r gpy-11.5 R



Gear pump manufacturers gpy-3r/gear pump gpy-8r gpy-4r gpy-4r



JANPN SHIMADZU gear pump gpy-11.5 R/ gear pump gpy-4r

Gear pump manufacturers gpy-2r/gear pump manufacturers gpy-2r



Gear pump gpy-2r gpy-9r gpy-2r/gear pump gpy-2r



GPY gear pump gpy-11.5 R/ gear pump gpy-3r gpy-2r gpy-9r



Gear pump gpy-8r gpy-4r gpy-9r/gear pump gpy-2r gpy-9r gpy-4r



JANPN SHIMADZU gear pump gpy-3r/gear pump gpy-3r gpy-2r gpy-9r



Gear pump gear and ordinary transmission gear is the same



Gear pump gear needs to occlusal clearance smooth and small, and to withstand pressure, wear resistance and high temperature, their materials are not the same, oil pump gear generally with 20CrMnMo, and transmission gear materials are not so many requirements. The machining precision between the two is not the same, gear pump gear requirements to achieve more than 7G accuracy, and the general as long as 10G or so can be.
