Hydraulic gear pump HGP-1A-F1R-X-2B for sale |
|
|
| Product name : Hydraulic gear pump HGP-1A-F1R-X-2B for sale |
| Item : |
| Details : |

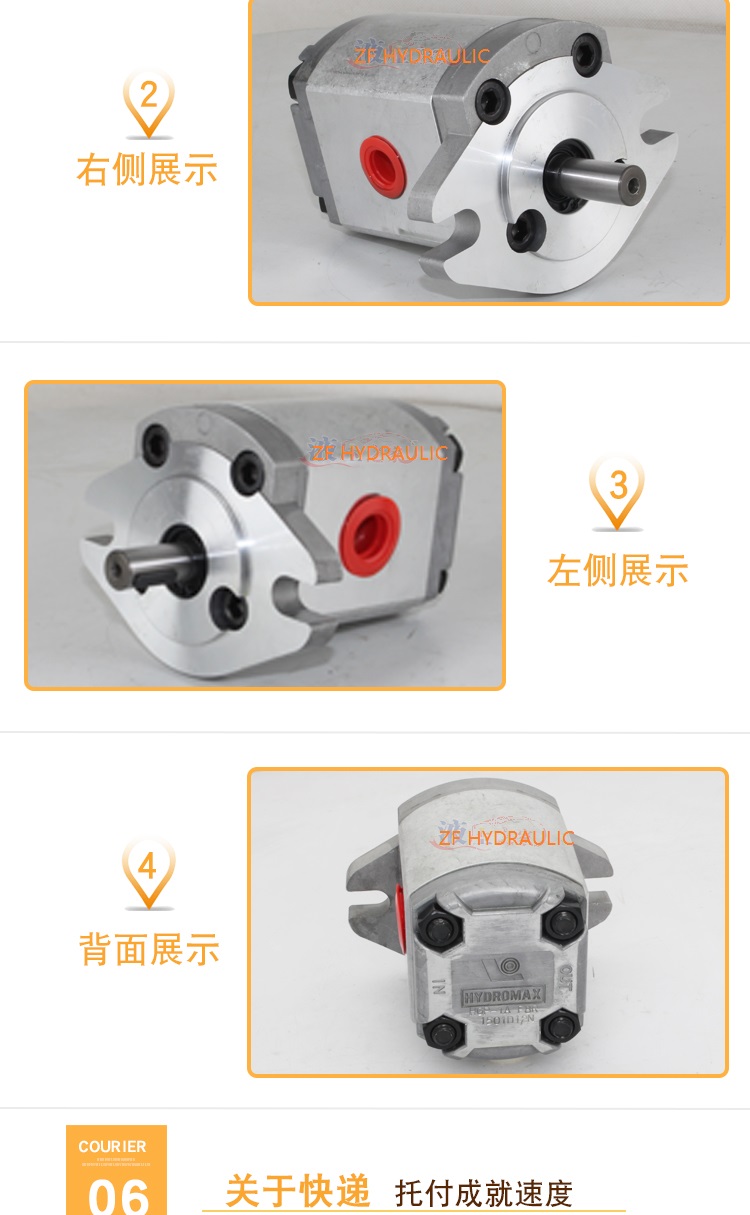

Hydraulic gear pump HGP-1A-F1R-X-2B for sale
Features
HGP-1A Gear Pump function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Model Definition
|
HGP-1A
|
-F
|
8
|
-R
|
-X
|
-2B
|
|
Series
|
Installation Type
|
Displacement
(cc/rev)
|
Input Rotation
|
Input Shaft
|
Front Flange Cover
|
|
Gear Pump 1A Series
|
F: Flange Mounting
L: Foot Mounting
|
1：1
2：2
3：3
4：4
5：5
6：6
8：7.8
|
R: Clockwise
L: Anti-clockwise
|
X: Straight Keyed
Y: Spline
|
2B : SAE 2-Bolt
4BD: DIN 4-bolt
4DE: European 4-bolt
|
|
Model
|
Displacement
(cc/rev)
|
Pressure
(bar)
|
Speed
(RPM)
|
Weight
(kg)
|
|
Rated
|
Max.
|
Rate
|
Min.
|
Max.
|
|
HGP-1A-F1
|
1
|
210
|
250
|
1800
|
1000
|
4500
|
1.00
|
|
HGP-1A-F2
|
2
|
600
|
4500
|
1.05
|
|
HGP-1A-F3
|
3
|
600
|
4500
|
1.15
|
|
HGP-1A-F4
|
4
|
600
|
4500
|
1.18
|
|
HGP-1A-F5
|
5
|
600
|
3200
|
1.20
|
|
HGP-1A-F6
|
6
|
600
|
3200
|
1.30
|
|
HGP-1A-F8
|
7.8
|
175
|
210
|
600
|
3200
|
1.40
|
Product introduction:
HGP series high pressure gear pump using high strength casting, radial sealing using the addendum sweep chamber, axial seal using floating pressure balance side plate, thus to achieve high efficiency. The pump has small volume, light weight, good performance, reliable work etc. Ontology adopt the aluminum alloy, high precision molding design, low noise, long service life. Especially suitable for petroleum, chemical industry, grain and oil, building materials, daily chemical, construction, electricity and asphalt mixing station departments and industry fuel injection occasion. Also more suitable for work pressure stable, long-term continuous working circumstance, such as: strong lubrication system, etc. Lifting the transport machinery, construction machinery, petroleum machinery, agricultural machinery, and other mechanical equipment. Could with low pressure mass flow vane pump to be high and low pump combination, rational utilization of main energy, cost saving.
Outside size:

|
Model
|
DimensionA
mm
|
DimensionB
mm
|
C–Inlet
|
D–Outlet
|
|
HGP–1A–F08*
|
75
|
36.5
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F1*
|
77
|
38.5
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F2*
|
80.5
|
40.25
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F3*
|
86
|
43
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F4*
|
88
|
44
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F5*
|
92
|
46
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F6*
|
96
|
48
|
3 / 8”PT
|
3 / 8”PT
|
|
HGP–1A–F8*
|
102
|
51
|
1/ 2”PT
|
3 / 8”PT
|
Hydraulic gear pump, loader hydraulic gear pump, gpy-6r/hydraulic gear pump, hydraulic gear pump standard, hgp-3af6r
Hydraulic gear pump, hydraulic station gear pump, hgp-3a-f28r/hydraulic gear pump, triple hydraulic gear pump, hgp-1af1r
Hydraulic gear pump, hydraulic machinery, hgp-2af2r/hydraulic gear pump, triple hydraulic gear pump, hgp-1af1r
Hydraulic gear pump, hydraulic gear pump manufacturers, hgp-1af3r/hydraulic gear pump, hydraulic gear pump CBN e306, hgp-3af23r
Hydraulic gear pump, hydraulic gear pump, hgp-3af14r/hydraulic gear pump, loader hydraulic gear pump, gpy-6r
Hydraulic gear pump, hydraulic gear pump specifications and models, hgp-1a-f6r/hydraulic gear pump, hydraulic gear pump selection, hgp-2a-f3r
Please contact us for details, we will serve you wholeheartedly.
[hydraulic gear pump, anyang hydraulic parts factory gear pump, hgp-1af5r] hydraulic gear pump, hydraulic gear pump, hgp-3af14r imported gear pump wholesale
【 hydraulic gear pump, anyang hydraulic parts factory gear pump, hgp-1af5r 】 hydraulic gear pump, hydraulic gear pump CBN e306, hgp-3af23r domestic gear pump wholesale
The company is specialized in gear pump model gear pump manufacturers gear pump manufacturers gear pump supply gear pump hydraulic gear pump working principle explosion-proof gear pump high temperature gear pump gear pump series high pressure gear pump cycloidal gear pump pump price HYDROMAX hgp-1a gear pump sales and production.
Gear pump and hydraulic steering is how to match
If the steering gear pump for oil supply, it would need to move to the required flow can be calculated, specific: assuming that steering displacement 1000, turn the steering wheel 1 per second, a minute should turn 60 times, steering flow is needed for 60 litres per minute, gives the corresponding displacement of the gear pump, if the gear pump is a level 6 motor driver, pump capacity greater than 60 can be chosen.
Gear pump is dependent on the pump cylinder and meshing gear formed by the change in working volume and movement to transfer liquid or pressurized rotary pump. Two closed Spaces are composed of two gears, pump body and front and rear covers. When the gear rotates, the volume of the space on the gear side becomes larger from small to large, forming a vacuum. The liquid is sucked in. The suction chamber and the discharge chamber are separated by the meshing line of the two gears. Gear pump outlet pressure is entirely dependent on the size of the pump outlet resistance.
Hydraulic steering gear is hydraulic power steering gear. Steering gear (also known as steering machine) is a group of gear mechanism that completes the movement from rotation to linear motion (or nearly linear motion), and it is also the deceleration transmission device in the steering system. It is the most important component in steering system.
Hydraulic gear pump, hydraulic machinery, hgp-2af2r/hydraulic gear pump, nachi hydraulic gear pump, hgp-1af5r
Hydraulic gear pump, triple hydraulic gear pump, hgp-1af1r/hydraulic gear pump, double hydraulic gear pump, hgp-3a-f19r
Hydraulic gear pump, imported hydraulic gear pump, hgp-3a-f11r/hydraulic gear pump, hydraulic gear pump selection, hgp-2a-f3r
Hydraulic gear pump, hydraulic gear pump accessories, hgp-2af9r/hydraulic gear pump, hydraulic gear pump manufacturers, hgp-1af3r
Hydraulic gear pump, hydraulic gear pump noise, hgp-3a-f17r/hydraulic gear pump, tianjin hydraulic gear pump, gpy-4r
Hydraulic gear pump, hydraulic gear pump parameters, hgp-3af13r/hydraulic gear pump, cb type hydraulic gear pump, hgp-3af17r
Gear pump purchase need to pay attention to what? Taizhou henghui hydraulic remind you:
1 if the bulk purchase of gear pump, must choose the regular gear pump manufacturers! (for example: ZF hydraulic)
2 to buy gear pump must sign a formal contract with the manufacturers!
3. Before purchasing gear pump in large quantities, be sure to let the manufacturer make prenatal sample confirmation!
ZF HYDRAULIC professional gear pump to provide bulk purchase, looking forward to cooperating with you!
Hydraulic gear pump, yuci hydraulic company gear pump, hgp-2a-f4r/hydraulic gear pump, hydraulic station gear pump, hgp-3a-f28r
Hydraulic gear pump, brick machine hydraulic gear pump cylinder, hgp-3a-f30r/hydraulic gear pump, hydraulic gear pump sales, hgp-3af25r
Hydraulic gear pump, yuci hydraulic company gear pump, hgp-2a-f4r/hydraulic gear pump, specializing in hydraulic gear pump, hgp-3af8r
Hydraulic gear pump, tianjin hydraulic gear pump, gpy-4r/hydraulic gear pump, hydraulic gear pump accessories, hgp-2af9r
Hydraulic gear pump, Beijing hydraulic gear pump factory, hgp-3a-f8r/hydraulic gear pump, high pressure hydraulic gear, hgp-2af6r
Hydraulic gear pump, tianjin hydraulic gear pump, gpy-4r/hydraulic gear pump, Beijing hydraulic gear pump factory, hgp-3a-f8r
Hydraulic gear pump, high pressure hydraulic gear, hgp-2af6r/hydraulic gear pump, high pressure hydraulic gear, hgp-2af6r
Hydraulic gear pump, brick hydraulic gear pump cylinder, hgp-3a-f30r/hydraulic gear pump, hydraulic gear pump parameters, hgp-3af13r
Hydraulic gear pump, hydraulic gear pump CBN e306, hgp-3af23r/hydraulic gear pump, changyuan hydraulic gear pump, hgp-1af4r
Hydraulic gear pump, specializing in hydraulic gear pump, hgp-3af8r/hydraulic gear pump, hydraulic gear pump, hgp-2a-f11r
How to calculate the torque of the gear pump
P-- -- input power of the pump
PP-- -- maximum working pressure of the pump
QVP -- pump flow
Vertical p-- the total efficiency of a hydraulic pump
Tn-- input torque of pump
Addendum: gear pump is dependent on the pump cylinder and meshing gear between the formation of the work volume change and movement to transfer liquid or pressurized rotary pump. Two closed Spaces are composed of two gears, pump body and front and rear covers. When the gear rotates, the volume of the space on the gear side becomes larger from small to large, forming a vacuum. The liquid is sucked in. The suction chamber and the discharge chamber are separated by the meshing line of the two gears. Gear pump outlet pressure is entirely dependent on the size of the pump outlet resistance.

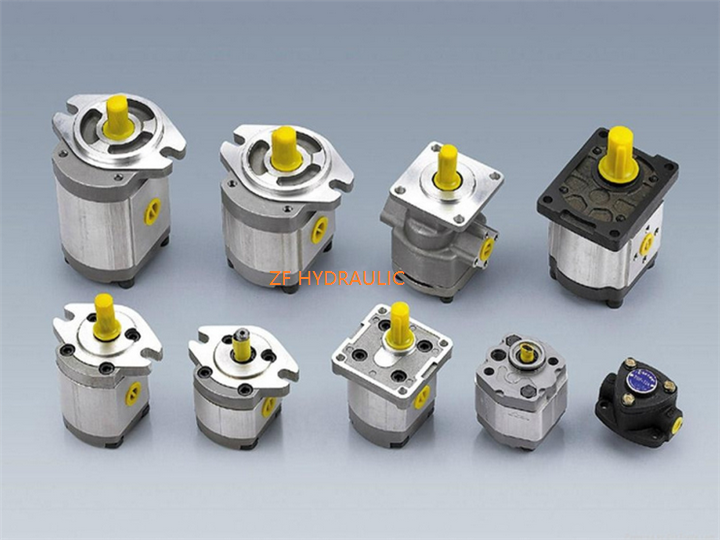

Variable vane pump gear pump product display gear pump
Vane pump manufacturer vane pump gear pump
Hydraulic gear pump gear pump manufacturers gear pump model gear pump price
Taiwan HYDROMAX gear pump HGP series gear pump CBB series gear pump
BBB cycloid gear pump GPY series gear pump CBN series gear pump.
Warranty period: ONE YEAR
1,Within one week after receipt of the goods, if customer use the products in correct method,and find any problem of performance or construction with obvious evidence,we will be responsible for replacement or other discussing solution between us.
2,But if customer using method are not correct, or customer disassemble our products privately,we will not responsible for any problem or defective points of products.
3, If you meet any questions of installation or debugging, please inquiry us anytime, our Engineer will provide technical support in time, or we will help you to resolve the technical failure through online video.
4, Any damage from transportion, we will slove the problem according to the responsibility standard of INCOTERMS.
|
 |
