Marine manual directional valve CSBF series CSBF-G32 |
|
| Product name : Marine manual directional valve CSBF series CSBF-G32 |
| Item : |
| Details : |

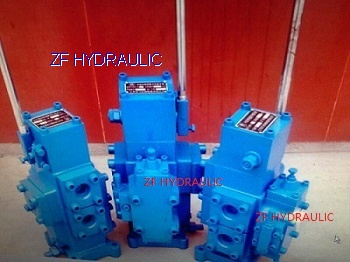

Marine manual directional valve CSBF series CSBF-G32
How to order:
|
Model
|
CSBF-G20
|
CSBF-G25
|
CSBF-G32
|
CSBF-G40
|
CSBF-G50
|
|
(mm)
|
20
|
25
|
32
|
40
|
50
|
|
Flow(L/min)
|
120
|
200
|
300
|
450
|
700
|
|
Pressure(MPa)
|
25
|
|
Adjust range(MPa)
|
5-25
|
|
Diverter valve
pressure difference(MPa)
|
≤0.6
|
Out size
|
|
Out size
|
|
DN
|
D
|
X
|
W
|
L
|
F
|
E
|
d
|
H
|
H1
|
H2
|
H3
|
H4
|
H5
|
H6
|
|
20
|
27.2
|
45.5
|
150
|
70
|
120
|
100
|
4-Φ9
|
445
|
107
|
68
|
77
|
68
|
32
|
19
|
|
25
|
34.5
|
56
|
195
|
202
|
166
|
140
|
4-Φ14
|
632
|
138
|
84
|
96
|
84
|
33
|
19
|
|
32
|
43.2
|
60.1
|
192
|
204
|
144
|
120
|
4-Φ11
|
635
|
153
|
88
|
112
|
88
|
35
|
21
|
|
40
|
49.5
|
73
|
212
|
223
|
170
|
140
|
4-Φ11
|
665
|
160
|
103
|
124
|
103
|
40
|
23
|
|
50
|
62
|
83.4
|
240
|
262
|
180
|
150
|
4-Φ13
|
755
|
208
|
124
|
146
|
124
|
45
|
26
|
Special note: this valve normally leaves the factory for manual control of m-type middle function (common type). If users need other middle function and special requirements, it should be put forward when ordering for supply
This valve is commonly used in the market China, and other different manufacturers produce the same model with the same size with the same parameters, more product matters please consult customer service. |
 |
