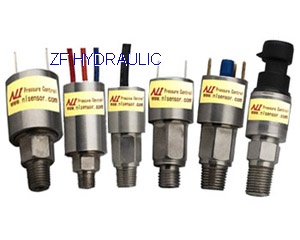

PC300 miniature stainless steel pressure switch
|
Model
|
(mm)
|
Overall dimensions
(mm)
|
Electrical connection
|
Switch type
normally closed(A)/ normally open(B)
/ C (normally open and normally closed)
|
Operation pressure
(PSI)
|
Reset pressure
(PSI)
|
|
PC 301
|
1/8-27NPT/9
|
Φ24x40
|
terminal
|
Single-pole single-throwA/B
|
-15～2200
|
-12～2180
|
|
PC 302
|
1/8-27NPT/9
|
Φ24x56
|
Direct line
|
Single-pole double-throwC
|
-15～2200
|
-12～2180
|
|
PC 303
|
1/4-18NPT/13
|
Φ24x61
|
Direct line
|
Single-pole single-throwA/B
|
-15～2200
|
-12～2180
|
|
PC 304
|
1/4-18NPT/13
|
Φ24x71
|
Direct line
|
Single-pole double-throwC
|
-15～2200
|
-12～2180
|
|
PC 305
|
M12x1.5/11
|
Φ24x55
|
terminal
|
Single-pole single-throwA/B
|
-15～2200
|
-12～2180
|
|
PC 306
|
M12x1.5/11
|
Φ24x71
|
Direct line
|
Single-pole double-throwC
|
-15～2200
|
-12～2180
|
|
PC 307
|
1/4-18NPT/13
|
Φ24x59
|
terminal
|
Single-pole single-throwA/B
|
-15～2200
|
-12～2180
|
|
PC 308
|
1/4-18NPT/13
|
Φ24x59
|
terminal
|
Single-pole double-throwC
|
-15～2200
|
-12～2180
|
|
|
Product features
1, using international advanced stainless steel diaphragm pressure, laser welding equipment, exquisite workmanship, high precision.
2, all stainless steel color, small, easy installation and use, integration of high and low voltage design, at the same time control system in high voltage side and low side pressure
Technical parameters
Output signal: switching signal
Range of working pressure (high) : 14.5 ~ 2200 psi
Reset pressure (low) range: -12~ 2180 psi
Working pressure deviation: ± 3 ~ 30 psi
Environment temperature: -40 ~ 85 ℃
Medium temperature: - 40 ~ 125 ℃
Electrical load: 220VAC, 56/60HZ, 3A
Working life: 100000 Cycles or more
