Pressure switch SER JCD-02S series

Model	Used Pressure (kg/cm2)	Max Pressure (kg/cm2)	Weight (kg)
JCD-02S	4 - 26	50	0.8
JCD-02H	15 - 200	230
JCD-02HH	20 - 360	600



Operating Voltage / Current
AC250V / 3A	DC24V / 160mA

Pressure switch JCS-02S, pressure switch JCS-02H, pressure switch JCS-02HH

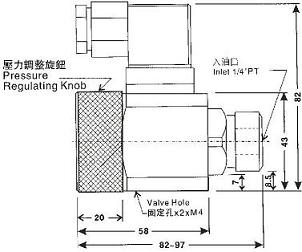

Dimension drawing:



Product introduction:

Pressure switch JCD series built-in micro switch, induction from hydraulic system pressure convey the electrical signal to electromagnetic directional valve or electric motor make it change direction or warning, closed circuit, in order to achieve the effect of system protection.

Pressure switch is the use of liquid pressure to open/close electrical contact hydraulic electrical interface element. When the system pressure to achieve value of pressure switch setting , a signal, make electrical components (such as electromagnet, motor, time relay, electromagnetic clutch, etc.) action, make the oil pressure relief, reversing, execute component realize order action, or closed motor make the system to stop working, and the safety protection, etc.

Our company production of all kinds of pressure switch has small volume, advanced craft, small flow resistance, complete product specification , 4~600 kg/cm2 pressure scope, complete installation: female, male, plate installation, pipe installation! Reliable quality, long life and other characteristics, widely used in various industries of automation control field, have won the user's praise from all walks of life.
