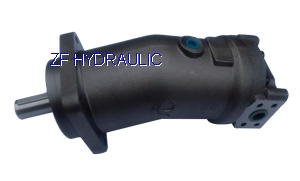

Rexroth Type A2F series A2F23R2P1 Fixed Displacement Axial Piston Pump / Motor

Rexroth Type A2F series A2F23R2P1 Fixed Displacement Axial Piston Pump / Motor
Product name : Rexroth Type A2F series A2F23R2P1 Fixed Displacement Axial Piston Pump / Motor
Item :
Details :
 Rexroth Type A2F series A2F23R2P1 Fixed Displacement Axial Piston Pump / Motor
How to order:
A2F6, A2F10, A2F12, A2F23, A2F28, A2F45, A2F55, A2F63,
A2F80, A2F107, A2F125, A2F160, A2F200, A2F250, A2F355, A2F500
Norminal Pressure: 350 bar.   Peak pressure: 400 bar
Sample: A2F 55 R 2 P 1
A2F
55
R
2
P
1

A2F= Fixed displacement Pump / Motor
55 =  Displacement (Vgmin ~Vgmax)
           9.4 ml/r         10
           11.6 ml/r       12
           22.7 ml/r       23
           28.1 ml/r       28
           44.3 ml/r       45
           54.8 ml/r       55
           63.0 ml/r       63
           80.0 ml/r       80
           107 ml/r       107
           125 ml/r       125
           160 ml/r       160
           200 ml/r       200
           225 ml/r       225
           250 ml/r       250
           355 ml/r       355
           500 ml/r       500


    R= Direction of rotation
          Clockwise           R
          Anti-clockwise     L
          Alternation           W

     2= Series
          Series: size 10~160        1,2,3,4
          Series: size 200~500      5

     P= Shaft end
           Keyed shaft GB1096-79        P
           Splined shaft DIN 5480          Z
           Splined shaf GB3478.1-83    S

     1= Rear cover                               1~6






Axial piston unit of bent axis design with fixed displacement, for use as either pump or motor in hydrostatic drives, in open or closed circuit.
If operated as a pump, the flow is proportional to the drive speed and displacement. If operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque increases with the pressure drop between the high and low pressure sides.

Features:

·Equivalent with original Rexroth same model.
·High performance rotary group with well-proven spherical control area with the advantages, self-centering low peripheral speed, high efficiency.
·Robust rolling bearing endure long service life.
·Drive shaft capable of adopting radial loading.
