Rexroth type Hydraulic piston pump piston motor A2FE250/61W-NAL1

Rexroth type Hydraulic piston pump piston motor A2FE250/61W-NAL1

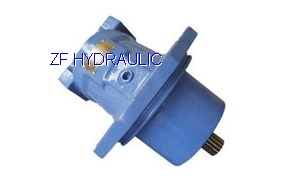

Product name : Rexroth type Hydraulic piston pump piston motor A2FE250/61W-NAL1
Item :
Details :

Rexroth type hydraulic piston pump piston motor A2FE250/61W-NAL1

Description:

It is mainly used for installating in a mechanical gear box, such as: track driving gear box

Features:

Motor installed in the middle of the shell flange design, this structure allows the motor almost entirely into mechanical gear box, thus providing a very compact unit.

Easy assembly, only "insert" mechanical gear box.

Don't need to consider installation of tolerance.









ZF hydraulic manufacturers wholesale, A2FE motor, A2F250L2S7.

 Product introduction:

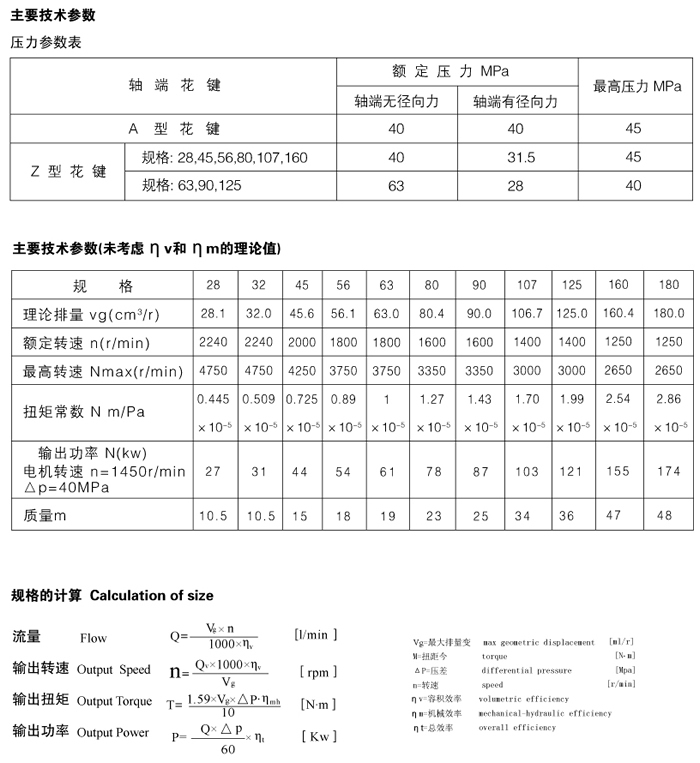

 Specifications 10, 12, 23, 28, 45, 55, 63, 80, 107, 125, 160, 200, 250, 355, 500

 Vg(ml/r) with displacement 9.4 11.6 22.7 28.1 44.3 54.8 63 80 107 125 160 200 250 35,500

 Maximum speed nmax(r/min

 Although piston motors have different structures and working principles, most air motors have the following characteristics:

 1. Can turn forward or backward. Most gas motors simply use the control valve to change the direction of motor inlet and exhaust, that is, the output shaft of the gas motor can be positive and reverse, and can be instantaneous reversing. In the forward and backward conversion, the impact is small. One of the main advantages of air motor reversing is its ability to rise to full speed almost instantaneously. Vane type air motor can reach full speed in one and a half turns; The piston gas motor can reach full speed in less than a second. Using the control valve to change the intake direction, can achieve positive and negative rotation. The positive and negative rotation time is short, the speed is fast, the impact is small, and does not need to unload the load.

 2. Safe operation, not affected by vibration, high temperature, electromagnetic, radiation, etc., suitable for harsh working environment, in flammable, explosive, high temperature, vibration, humidity, dust and other adverse conditions can work normally. -- wholesale manufacturers, A2FE motor, A2F250L2S7

 3. Stepless speed regulation is available. As long as the control of the inlet valve or exhaust valve opening, that is, to control the flow of compressed air, you can adjust the output power and speed of the motor. Can achieve the purpose that adjusts rotate speed and power. Manufacturers wholesale, A2FE motor, A2F250L2S7

 This series piston motor other models have: A2FE28/61W-NAL1,  A2FE32/61W-NAL1, A2FE45/61W-NAL1, A2FE63/61W-NAL1,  A2FE80/61W-NAL1, A2FE90/61W-NAL1,  A2FE107/61W-NAL1, A2FE125/61W-NAL1,  A2FE160/61W-NAL1,  A2FE180/61W-NAL1, A2FE250/61W-NAL1,  A2FE355/61W-NAL1,
