PC100 minitype pressure switch

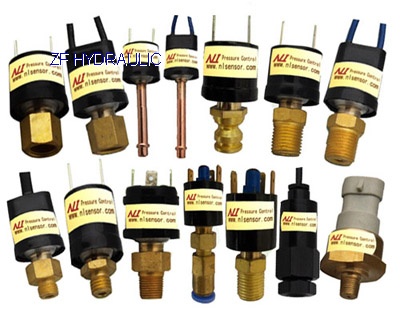

Product name : PC100 minitype pressure switch

Item :

Details :

Model	Thread size and length (mm)	Overall dimensions (mm)	Electrical connection	Switch type normally closed(A)/ normally open(B) / C (normally open and normally closed)	Operation pressure (PSI)	Reset pressure (PSI)
PC 101	inner 7/16-20UNF	Φ22x39	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 102	inner 7/16-20UNF	Φ22x45	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 103	Φ6 air tube/72	Φ22x94	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 104	Φ6 air tube/72	Φ22x100	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 105	Φ6 air tube/72	Φ22x94	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 106	Φ12 air tube/21	Φ22x43	terminal	Single-pole single-throwA/B	-14.5～80	-12～75
PC 107	G1/4-19BSP/13	Φ22x45	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 108	G1/4-19BSP/13	Φ22x51	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 109	1/4-18NPT/13	Φ22x45	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 110	1/4-18NPT/13	Φ22x51	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 111	G1/8-28BSP/10	Φ22x51	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 112	G1/8-28BSP/10	Φ22x51	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 113	1/8-27NPT/10	Φ22x45	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 114	1/8-27NPT/10	Φ22x51	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 115	3/8-24UNF/7	Φ22x34	terminal	Single-pole single-throwA/B	-14.5～300	-12～180
PC 116	3/8-24UNF/7	Φ22x48	Direct line	Single-pole single-throwA/B	-14.5～300	-12～180
PC 117	M10x1/11	Φ22x46	terminal	Single-pole single-throwA/B	-14.5～300	-12～180
PC 118	M10x1.5/11	Φ22x46	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 119	M8x1/8	Φ22x42	terminal	Single-pole single-throwA/B	-14.5～300	-12～180
PC 120	G1/4 /13	Φ24x46	terminal	Single-pole double-throwC	-14.5～800	-12～780
PC 121	1/4-18NPT/13	Φ22x46	terminal	Single-pole double-throwC	-14.5～800	-12～780
PC 122	M12x1.25 conical head /13	Φ22x45	terminal	Single-pole single-throwA/B	-14.5～800	-12～780
PC 123	G1/4/13	Φ24x61	Direct line	Single-pole double-throwC	-14.5～800	-12～780
PC 124	G1/2/14	Φ24x55	terminal	Single-pole double-throwC	-14.5～800	-12～780
PC 125	G1/2/14	Φ24x51	terminal	Single-pole double-throwC	-14.5～800	-12～780
PC 126	Φ8 or Φ6 Tracheal joints	Φ24x68	terminal	Single-pole double-throwC	-14.5～80	-12～75
PC 127	G1/2/12	Φ24x55	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 128	1/8-27NPT	Φ23x45	terminal	Single-pole double-throwC	-14.5～800	-12～780
PC 129	inner M11x1/6.5	Φ24x55	Direct line	Single-pole single-throwA/B	-14.5～300	-12～180
PC 130	G1/8-28/10	Φ22.5x51	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 131	1/8-27NPT/10.5	Φ28.5x64	connectors	Single-pole double-throwC	-14.5～300	-12～180
PC 132	inner M14x1/8	Φ25x61	Direct line	Single-pole double-throwC	-1000～200	-500～150
PC 133	M12x1.25 cone/13	Φ24x51	Direct line	Single-pole single-throwA/B	-14.5～800	-12～780
PC 134	M12x1.25 cone/13	Φ24x61	Direct line	Single-pole double-throwC	-14.5～800	-12～780

Product features

1, using international advanced stainless steel diaphragm pressure (stainless steel bellows), laser welding equipment, exquisite workmanship, high precision.

2, compact appearance, easy installation and use, integration of high and low voltage design, at the same time control system in high voltage side and low side pressure.

3, switch electric contact work long life (more than 100000 times), good shockproof performance.

Technical parameters

Output signal: switching signal

Range of working pressure (high) : -14.5 ~ 800 psi

Reset pressure (low) range: - 12-780 psi

Working pressure deviation: ±3 ~ 30 psi

Environment temperature: -40 ~ 85 ℃

Medium temperature: - 40 ~ 125 ℃

Load power supply: 220VAC, 56/60HZ, 6A

Working life: 100000 Cycles or more

If users have special requirements, can according to supplied samples, drawings, technical parameters, etc.

PC100 series miniature pressure switch models table - when placing order, according to our company all the corresponding parameters of the standard shall prevail (attach)
