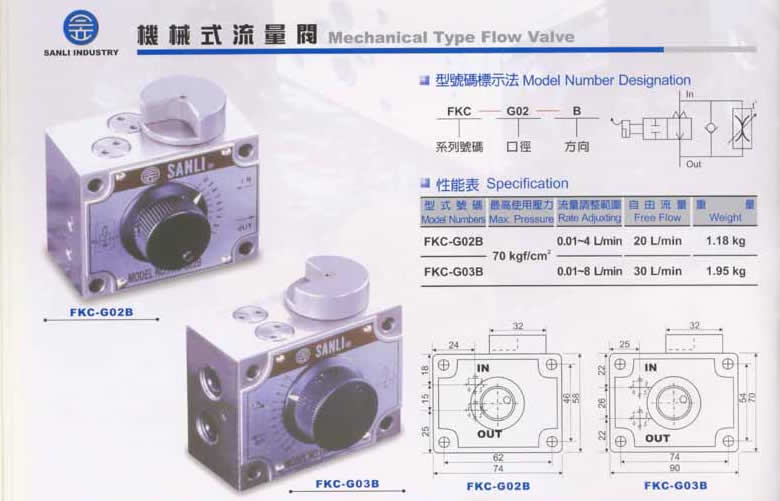

Flow regulating valve fkc-g02a fkc-g02al fkc-g02b fkc-g02bl
1, with pressure compensation device, can maintain a stable flow, not affected by the change of inlet and outlet pressure, can accurately control the speed of the actuator.
2, one-way speed regulating valve so that the flow in one direction can be adjusted, and the reverse can flow freely, according to the label scale can be convenient to adjust or reset the flow.
3, suitable for the control of mechanical action fast, slow and fast return, very suitable for the use of tool machine.
Model specification
FKC
|
-G
|
02
|
-2
|
A
|
-
|
Series
|
Mouting type
|
Oil port
|
Flow arrange
L/min
|
in and out port
|
Camshaft direction |
One-way speed regulating valve
FKC: putter type
FNC: flat
|
G:Plate
|
02: 1/4"
03: 3/8"
|
2: 0.05-2
3: 0.05-4
|
Look at the adjusting knob
02: left side of A (standard)
B on the right side
03: right side of A (standard)
B on the left side of the
|
Unmarked: forward
L: the reverse
|
规格表
Model
|
Free flow
L/min
|
Max pressure
MPa
|
port (PT)
|
flow adjust arrange
l/min
|
Weight Kg
|
FNC-G02
|
20
|
7
|
1/4"
|
2: 0.05~2
4: 0.05~4
|
1.2
|
FNC-G03
|
20
|
1/4"
|
2
|
FKC-G02
|
30
|
3/8"
|
2.6
|
FKC-G03
|
30
|
3/8"
|
2.6
|
Notes for use :FNC-G02_FNC-G03_FNC one-way speed regulating valve
1. The scale of 10 equal parts on the label has the same flow rate in each grid.
2, FKC putter type rotor connected to the mechanical putter, according to the movement of the round trip to achieve the second speed regulation and open and close function. FNC plane type can only be adjusted once.
3, FKC putter assembly, you can inquire.
1, one-way speed regulating valve FKC,FNC series with pressure compensation device, can maintain a stable flow, not affected by the change of inlet and outlet pressure difference, can accurately control the speed of the actuator.
2, one-way speed regulating valve FKC,FNC series so that the flow in one direction can be adjusted, and the reverse can flow freely, according to the label scale can be convenient to adjust or reset the flow.
3, one-way speed regulating valve FKC,FNC series for the control of mechanical action fast, slow and fast return, very suitable for the use of tool machine.
FKC,FNC series models: fkc-g02-2, fkc-g03-2, fkc-g02-3, fkc-g03-3, fnc-g02-2, fnc-g03-2, fnc-g03-3, fnc-g03-3.
1, one-way speed regulating valve FKC,FNC series plate on the scale of 10 equal, each cell of the same flow.
2, one-way speed regulating valve FKC,FNC series push rod type rotor connected to the mechanical push rod, according to the movement of the round trip to achieve the second speed and open and close functions. FNC plane type can only be adjusted once.
3, one-way speed regulating valve FKC,FNC series push rod assembly, please contact the new hydraulic valve technology department. Remarks: one-way speed regulating valve FKC,FNC series - speed regulating valve, one-way speed regulating valve - public new hydraulic valve network production sales of all kinds of one-way speed regulating valve FKC,FNC series
