Sanli brand mechanical type flow valve FYC-G02 |
|
| Product name : Sanli brand mechanical type flow valve FYC-G02 |
| Item : |
| Details : |

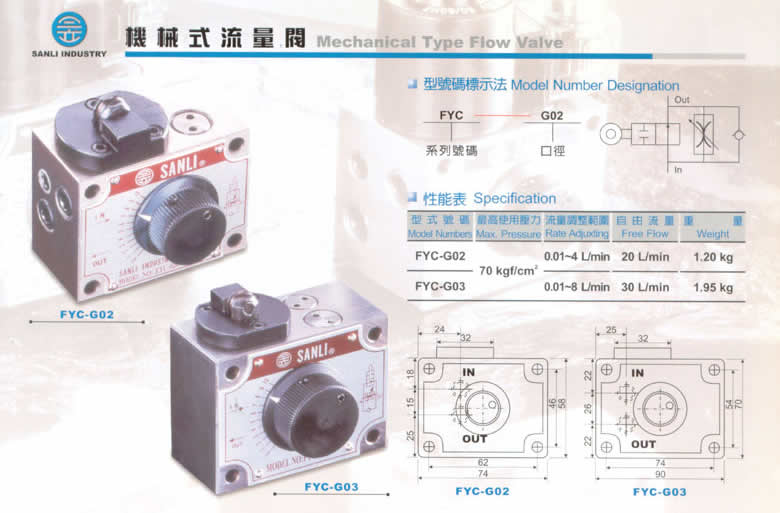

Sanli brand mechanical type flow valve FYC-G02
Other models: FYC-G03
Unidirectional speed regulating valve pressure compensation valve features 1, with pressure compensation device, can maintain a stable flow, not affected by the change of inlet and outlet pressure difference, can accurately control the speed of the actuator. 2, one-way speed regulating valve so that the flow in one direction can be adjusted, and the reverse can flow freely, according to the label scale can be easily adjusted or reset the flow. 3, suitable for the control of mechanical action fast, slow and fast return, very suitable for the use of tool machine. 1. On the scale of 10 equal parts on the label, the flow rate of each grid is the same. 2, FKC push-rod type rotor connected to the mechanical push rod, according to the movement of the round trip to achieve secondary speed regulation and open and close function. FNC plane type can only adjust speed once. 3. For FKC push-rod assembly, please contact our technical department. |
 |
